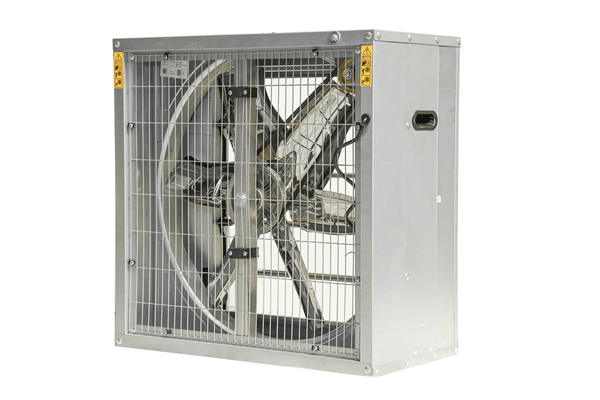

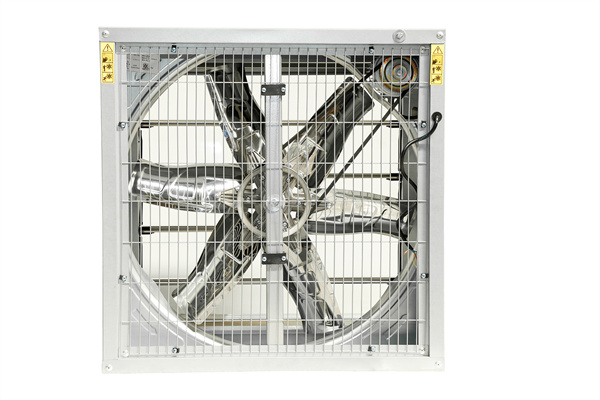

DROP HAMMER BOX FAN 50INCH 36INCH

Type:Axial Flow Fan

Applicable Industries:poultry house/poultry farm/Industry

Electric Current Type:AC

Mounting:Wall Fan

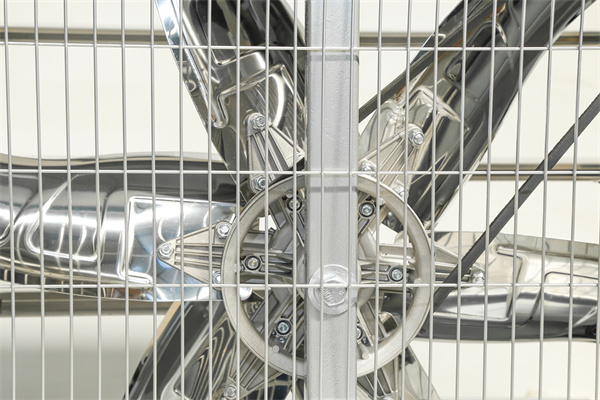

Blade Material:Stainless Steel

Place of Origin:Shandong, China

Brand Name:XIANGLI

Model Number:XLXS

Voltage:380V/220V/Customized

Certification:CE CCC, TUV,ISO

Warranty:2 years

After-sales Service Provided:Video technical support

Size:1380*1380*400MM

Drive type:Belt

Blades Diameter:1270MM

Blades rotational speed:439rpm

Motor rotational speed:1400rpm

Airflow:42400m3/h

Total pressure:70pa/70pa/80pa

Noise Level:<64

Input Power:1100W

Frequency:50HZ/60HZ

Frame

Hot galvanized plate GB/T 2518-2008， Galvanized layer 275 g/m2

Shutter: made of pressed hot galvanized steel in order to highest strength

Link part: Aluminum Alloy material to make sure shutters open flexibly.

Motor

Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor

1. Motor Protection Grade: IP55

2. Isulation Class: F grade

3.Strong resistance to overloading.

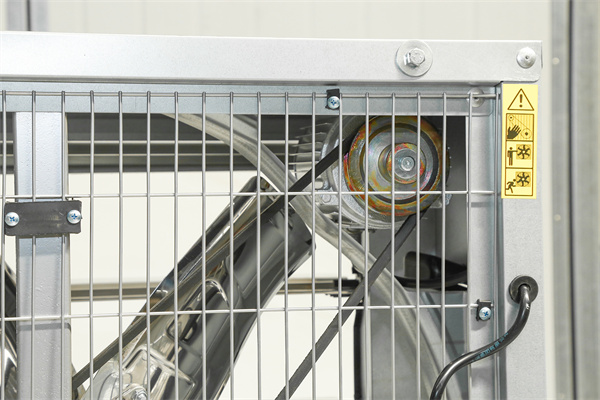

Belts: Original Japan for long service life, strong anti-pull ability, high transmission efficie
